Overview

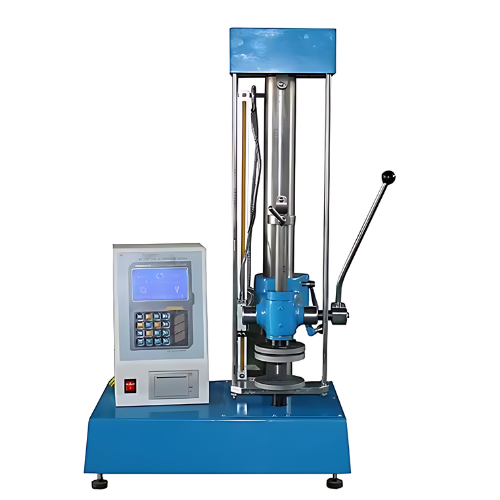

GAOTek manual loading spring line tester is machine can test and analyse the tension, pressure, displacement and stiffness of various cylindrical springs, disc springs, tower springs, circlips, leaf springs, special-shaped springs and other precision springs.
Features
- Determine whether the spring is qualified or not
- By measuring the deformation amount of the spring
- Through the force value F of the spring
- Measure the corresponding spring deformation
- One or more points can be tested to judge whether
- the spring is qualified.
Technical Specifications
| Capacity | 200 N |
| Way of Working | Manual loading |
| Display Method | LCD display |
| Measuring Range | 1 % to 100 % FS |
| Test Resolution | 0.01 N |
| Displacement Resolution | 0.003 in (0.01 mm) |
| Stretch Space | 8.6 in (220 mm) |
| Compression Space | 8.6 in (220 mm) |
| Platen Diameter | 2.3 in (60 mm) |
| Power Supply | AC 220 V ± 10 % 50 Hz |
| Dimensions | 18.5 in x 11.8 in x 27.9 in (470 mm × 300 mm × 710 mm) |
| Weight | 66 lb (30 kg) |
