Overview

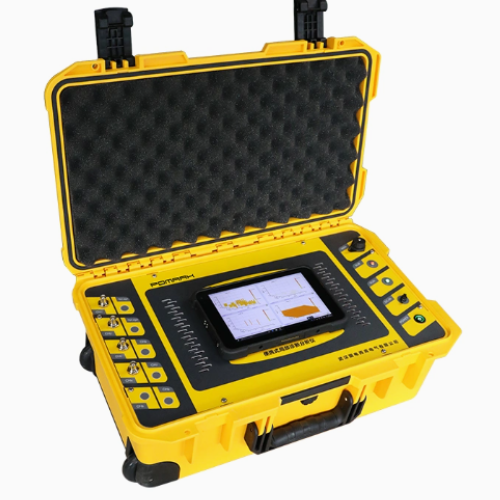

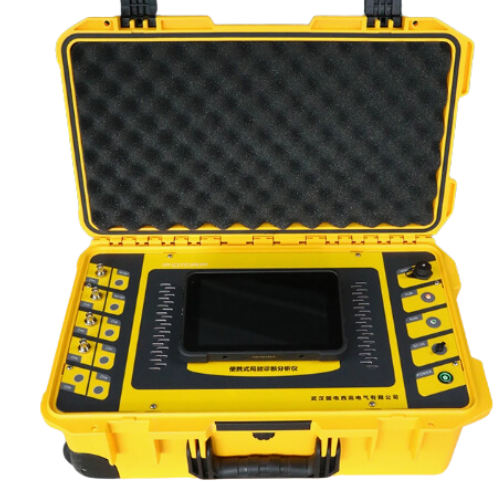

GAOTek partial discharge inspection tester is smart quick intelligent power test system. Company introduces international advanced PD detection technology to develop and produce portable and efficient PD inspection tools for live high-voltage insulation equipment. It can flexibly configure various sensors according to different tested objects. TEV, AE and HFCT are suitable for partial discharge detection of high-voltage switchgear and ring network cabinet; AE and UHF are suitable for detecting the insulation state of GIS; AE and HFCT are suitable for testing the insulation state of the cable. The built-in expert diagnosis system can analyze the test data and judge the discharge energy and parts. It is widely used in electric power and railway.
Features
- Easy for carrying and operating
- Data can be sent to the terminal by wire and wireless
- Software system
- Collects and analyses 4 channels of signals
- 6 or 8 or 16 channels can be configured
- 1 In tablet
- Over-limit alarm
- Trouble free time
- Electromagnetic compatibility
- Safe performance
Technical Specifications
| CPU Working frequency | 1.2GHz |
| Wired network port | LAN network port |
| System running memory | 1G |
| Data acquisition frequency | 250MHz |
| Specification | ISO, SGS |
| Power Source | AC220 V |
| Operating system | Linx embedded operating system and Windows 10 |
| Wireless network port | Built in WiFi |
| System storage memory | 512 M |
| CPU | Intel Quad Core Atom Z3735F |
| GPU | Intel HD Graphic (Gen7) |
| RAM | 2 GB |
| Flash | 32 GB |
| Display | 8.1 in (205 mm) 1280 × 800 IPS screen |
| Network interface | Wifi and Bluetooth |
| Battery | 3.7 V 8500 mAH polymer lithium ion battery |
| IP level | 54 |
| Environment humidity | 0~90%RH |
| Working temperature | -4ºF to 122ºF (-20ºC~50ºC) |
| Dimensions | 22.44 in x 14.17 in x 9.45 in (570mm*360mm*240mm) |
| Weight | 17.6 lb (0.8 Kg) |
