Overview

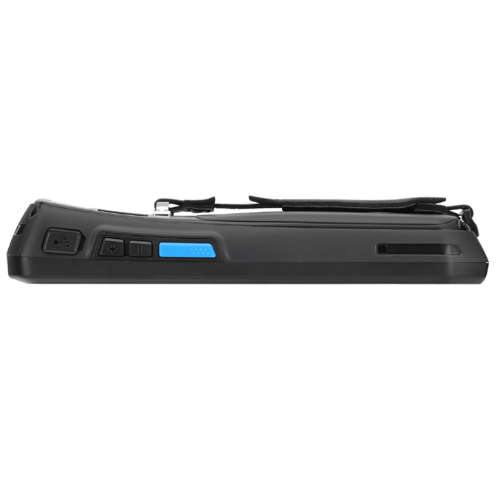

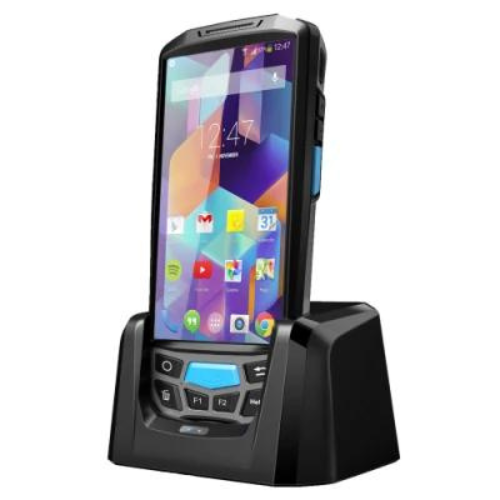

GAOTek Portable Wireless WIFI Barcode Reading Android Handheld RFID UHF Reader Default Configuration: 1D+2D + Wifi + BT + 4G (FDD or TDD-LTE) + Phone + GPS + 8M Camera + Google Player Store. UHF, NFC,LF, RFID are optional. Compact And Portable Ergonomic Design With Wrist Strap. Safedroid OS (Android 7.0) Highly Optimized Android Operating System, 8.0M Mega Pixel Camera.Has High Capacity 4800 mAh Large Capacity Battery For Critical Requirements; Pogo Pin Interface For Convenient Charging With Optional Charge Cradle. Industrial Rugged Design, Water-Proof And Protection Grade (IP66).
Technical Specifications
| Frequency (UHF RFID Reader) | 865 MHz to 868 MHz or 920 MHz to 925 MHz (China) 902 MHz to 928 MHz (America) 865 MHz to 868 MHz (Europe) (ETSI EN 302 208) |
| Protocol | EPC C1 GEN2 or ISO18000-6C |
| Antenna (UHF RFID) | Linear polarisation (1.8 dBi) or Circular polarisation (2.5 dBi) |
| Power (UHF RFID) | 1 W (typical 24 dBm, +10 dBm to +30 dBm) |
| Range (UHF RFID) | > 4.9 ft (1.5 m) |
| Frequency (LF) | 125 kHz, 134 kHz (FDX-B or HDX) |
| Protocol (LF) | ISO11784 or 5, ISO18000-2 |
| Range | 1.1 in to 3.1 in (30 mm to 80 mm)(3 cm to 8 cm) |
| Frequency (HF RFID Reader) | 13.56 MHz |
| Protocol (HF RFID Reader) | ISO14443A or B, ISO15693 |
| Range | 1.1 in to 3.1 in (30 mm to 80 mm) (3 cm to 8 cm) |
| Frequency (NFC Reader) | 13.56 MHz |
| Protocol (NFC Reader) | ISO or IEC 18092 (ECMA 340) |
| Range | 0.7 in to 1.5 in (20 mm to 40 mm) (2 cm to 4 cm) |
| Internet Connection | WI-FI |
| Classification | Bar-code Scanner |
| Keyword | RFID UHF Hand Held Reader |
| Battery | 3.7 V 4800 mAh |
| Process Type | Arm Cortex-A53 64bit Quad-Core 1.3G |
| FDD or TDD-LTE 4G | TDD-LTE (B38, B39, B40, B41), FDD-LTE (B1, B3) |
| Camera | 8MP Autofocus Camera with Flash |
| Support | Support a-GPS |
| Fingerprint (Optional) | Capacitive Sensor |
| Barcode Scanner | 1d or 2D Optional |
| Function | Warehouse Logistic Inventory |
| Display Screen | (5.0 in) 12.7 cm IPS Px with Multi-point touch capactive screen |
| Expand Port | SIM card, micro SD (TF) Card |
| Communication Interface | USB 2.0 Device |
| Input Mode | Standard Stylus, Handwriting, touching input or keyboard input |
| Battery Capacity | Rechargeable Li-polymer Battery 3.7 V 5000 mAh |
| Frequency | 8 ohm 1 W speaker |
| Key | 13 pcs soft silicon key |
| OS | Android 7.0 |
| CPU | ARM CORTEX-A53 64 bit Quad-Core 1.3 G |
| RAM | 2 G RAM |
| Flash ROM | Standard 16G NAND Flash Storage
micro SD or TF port (Max up to 32G) |
| WIFI | Support IEEE802.11 a or b or G or n protocol, it need effective wireless LAN signal cover |
| WCDMA 3G | B1,B2,B5,B8 |
| GSM 2G | GSM or edge or GPRS (850 MHz,900 MHz,1800 MHz,1900 MHz) |
| BT | Support bt 2.0 + EDR or 3.0 + HS or 4.1 + HS, transmission distance is 16.4 ft to 32.8 ft (5 m to 10 m) |
| Camera | 8 MP autofocus camera with flash |
| GPS | Support A-GPS |
| 1D Laser Scanner | Symbol 955, HoneywellN4313, Mingde966 |
| Resolution | 4 Mil minimum width |
| Ambient Light | 10000 ft.candles (107640 lux) |
| Scanning Speed | 104 (±)12 per sec (bothway) |
| Scanning Angle | 47o ± 35o (Standard) or 35o±3o(narrow angle) |
| Support Bar Code Type | UPC or EAN, Code128, Code39, Code93,Code11, Interleaved 2 of 5, Discrete 2 of 5,Chinese 2 of 5, Codabar, MSI, RSS |
| CMOS Scanner | Honeywell N6603,NewLand 3096 |
| The Sensor Resolution | 752 (level) × 480 (vertical) pels (gray level) |
| Ambient Light | All dark 9000ft. candles per 96900 lux |
| Focus Element (VLD) | 655 nm ± 10 nm |
| Support Bar Code Type | PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3 |
| Sensor | TCS2SS |
| Sensor Type | Capacitive Sensor |
| Function | Enrollment, compare, deletion etc. |
| Resolution | 508DPI |
| Memory | 1000 PCS fingerprints |
| Roll Specifications | 1000 times per 1.6 ft (0.5 m), roll on 6 sides contact area |
| Drop Specifications | 6 sides can bear impact from 4.9 ft (1.5 m) drop to cement floor in the range of operating temperature |
| Sealed Environment | IP65 |
| Environment Humidity | 5 % RH to 95 % RH(no condensation) |
| Operating Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Storage Temperature | -13 °F to 158 °F (-25 °C to 70 °C) |
| Dimensions | 6.7 in X 3.1 in X 1.0 in (172 mm X 80 mm X 27 mm) |
| Size | < 17.6 oz (500 g) |
